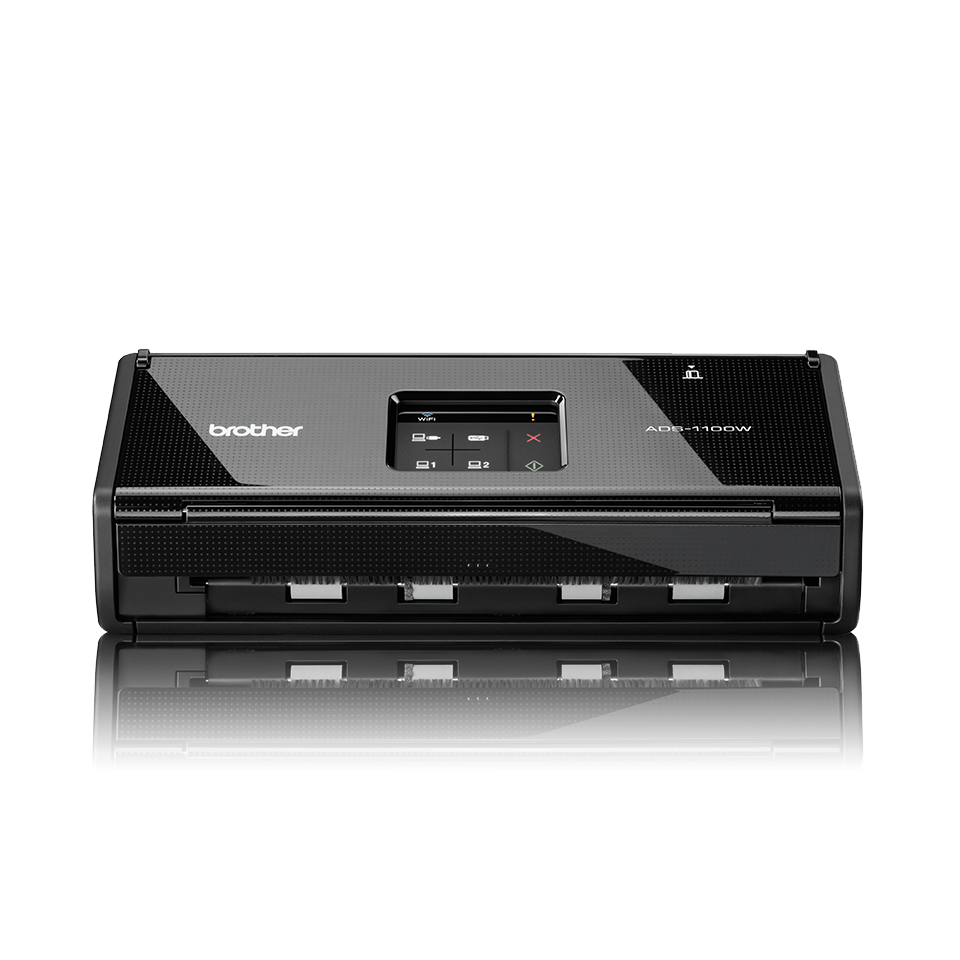

ADS-1100W - langaton asiakirjaskanneri

Nopea langaton duplex asiakirjaskanneri

Tekniset tiedot


Monisyöttötunnistin Kyllä
RAM-muisti 128 Mt
Käyttötyyppi Työpöytä


USB-liitäntä High Speed USB 2.0
Langaton verkkoliitäntä Langaton 802.11b/g/n

Mitat ja painot

Pakkaus 380 (l) x 170 (s) x 207 (k) mm
Laite 285 (l) x 103 (s) x 84 (k) mm


Käyttö 14 wattia
Valmiustila 4 wattia
Ääniteho 59 dB
Äänenpaine 47 dBA
Lepotila 15 wattia
Sammutettu 25 wattia


Käyttökosteus 20 - 80%
Käyttölämpötila 5 - 35°C

Laitteen mukana

Verkkolaite Kyllä
Virtalähteen johto Kyllä
Tuotteen turvaohjeet Kyllä
Ohjelmistolevy Driver software for Windows® and Mac OS
USB-kaapeli Kyllä
Käyttöopas Kyllä
Pika-asennusopas Kyllä

Tulostusmateriaalin tekniset tiedot

Tyypit ja koot Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card
Painot 52 - 110 gsm (multiple sheets)
ADS:n tulostusmateriaalikoot Paper (multiple sheets): 51-215.9x70-297mm, Paper (single sheet): 51-215.9x70x863mm, Plastic card: 51-55x70-95mm, Plastic card Thickness: 0.4-0.76mm


IPv4 Yes
Verkkoprotokollat ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, Custom Raw Port/Port9100, FTP Client and Server, SNMPv1/v2c, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Scan), SNTP Client
Langattoman verkon suojaus APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (HTTPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES).
Langattoman verkon tuki Kyllä
Langaton verkkoliitäntä Langaton 802.11b/g/n


ADF 20
Skannaustoiminnot email, Image, OCR, File, USB
A4-väriskannausnopeus 16 sivua / min
Harmaasävyt 256 levels
ICA-yhteensopivuus Yes
ISIS-yhteensopiva Yes
Monisyötön tunnistin Kyllä
Paperianturi Kyllä
SANE-yhteensopivuus Yes
Skannaustarkkuus ADS:stä 600 x 600
WIA-yhteensopivuus Yes


Takuu 2 vuoden takuu
Näytä lisää
Näytä vähemmän

Tuki ja esitteet

Nainen työskentelee tietokoneellaan avokonttorissa

Ajurit ja lataukset

Lataa ja asenna viimeisimmät ajurit ja apuohjelmat Brother-laitteellesi.

Tutustu latauksiin

Arvostelut ja arviot

ADS1100W is rated 3.4 out of 5 by 9.
Rated 4 out of 5 by from Uso doméstico y pequeña empresa perfecto Yo lo compré hace un par de años y soluciona las necesidades de escaneo. hojas sueltas, escrituras, tickets, a mí si me va bien, a veces si la hoja está un poco deteriorada se puede atascar, pero creo que es la mejor relación calidad-precio que conozco.
Date published: 2019-05-29
Rated 1 out of 5 by from SE ATASCA CONSTANTEMENTE No lo recomiendo para una oficina por más pequeña que sea. Se atasca constantemente y rompe la hoja por la derecha. Según el fabricante no acepta hojas de 90gr, pero el mismo problema lo tiene para los diferentes gramajes
Date published: 2019-05-01
Rated 5 out of 5 by from Klein und Kompakt Für die meinsten Einsatzgebiete vollkommen Einsatzfähig
Date published: 2018-10-22
Rated 2 out of 5 by from Don't bother if you want to scan any quantity I bought this because I didn't want to have to use my computer to scan and the Brother website said that it would scan to Dropbox - it doesn't. After I set it all up and couldn't get it to work, I contacted support and all their support people could do was to tell me to return it because it doesn't scan to web at all. They then updated the website, so at least it is right now. In the hope that I had not wasted my time in setting it up, I thought I would try scanning to USB - I wish I hadn't bothered - it took 1 min 33 seconds to scan and save (mostly save) a 1 sheet, 2 sided document. On the plus side, the scans were of decent quality, but I just can't waste my life waiting for them to save! It is going back.
Date published: 2018-06-15
Rated 4 out of 5 by from Good simple compact desktop scanner This is a great basic scanner for everyday use. It can scan documents double sided very quickly. Obviously this can only be used on sheets of paper, and books etc are not compatible. We have just started a new business and the scanner has saved us a lot of time when it comes to uploading contracts etc.
Date published: 2017-10-23
Rated 1 out of 5 by from Scanner purchase Whilst the scanner was just what I was looking for I am very disappointed the software provided did not allow me to set up the scanner and therefore I am not currently using it until I can find a solution.
Date published: 2017-07-31
Rated 4 out of 5 by from Fast set-up and scanning with difficulties with sheet-fed Easy set up to use in wifi. Fast scanning even with highest resolution of 600dpi. Main point is that the scanner pies not pull in paper straight. With highest resolution paper is pulled through slower - I made a diy construction that ensures a4 paper is fed straight even when using lower dpi. Now it's fine - but brother should be able to come up with a solution on its own. Will be even more important if more pages shall be scanned.
Date published: 2016-09-14
Rated 5 out of 5 by from Great Device I bought this to scan documents for home and work. It is small for storage and very easy to set up. For the cost the speed of the device is very good and the PDF scan quality has been more than acceptable at full speed. There have been one or two paper jams but hat probably had more to do with how I stacked the device rather than an major issue. For the price I think you would struggle to find a faster scanner. It ticks a lot of boxes.
Date published: 2016-02-21
